Archify 是一个面向 AI 编码代理的技能（skill），可安装在 Claude Code、Codex CLI、Cursor、OpenCode 等工具中。你只需向代理描述一个想法、计划或直接指定仓库，它就会生成单文件 HTML 的交互式图表：节点可点击、源码可追溯到具体提交、路径可高亮追踪。除了架构图，它也能把一个问题拆成带结论、分面板、含表格与代码的说明页，并附上带编号的来源引用。输出支持四种风格与明暗主题，可导出 PNG/WebP/JPG 长图或打印为 PDF，方便分享与复核。官方提供多个已验证场景与校验记录，用于确认生成结果是否可靠。
Turn anything you want to understand, plan, or share into an interactive visual.
Official channels： archify.si · GitHub
Archify is free and open source. Third-party online services and paid plans are operated by their respective providers and do not represent Archify. Service details →
Start with an idea, a question, or a plan. Describe it to your AI agent, and Archify turns it into an interactive HTML you can explore, customize, and share. From travel itineraries and learning maps to complex systems—make it your own.
See what the community is creating—and imagine what you could make next.

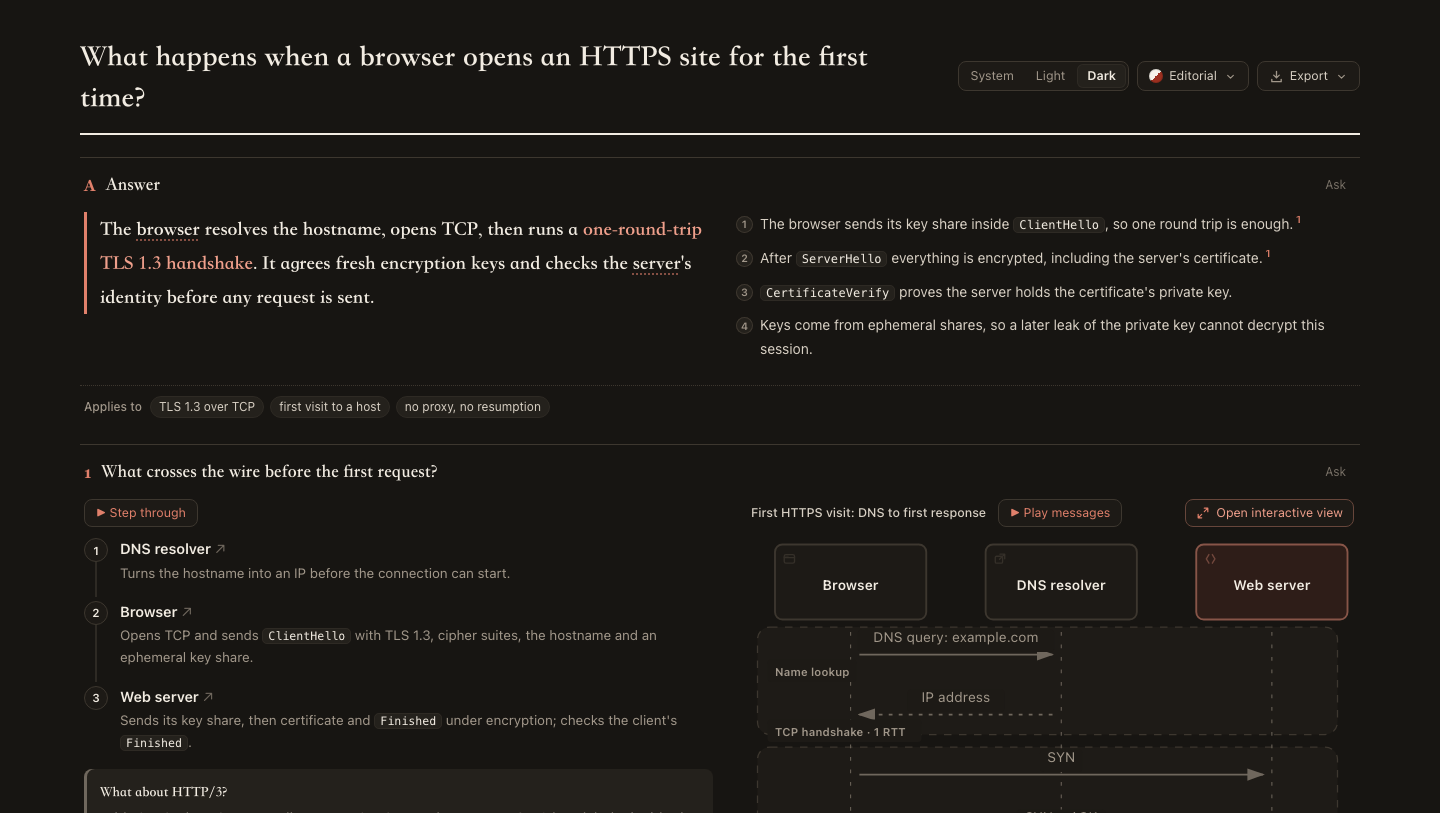

Not every answer is one diagram. Ask your agent to answer as a page and Archify builds an explainer: the conclusion first, then one panel per question, with tables, steps, charts, code and validated diagrams.
Conclusion first. The answer and its reasons lead; every panel takes one question.
Diagrams that explain. Steps sit beside the diagram they walk through and light its parts as you read. Click any node to open the full interactive view.
Easy to check. Claims cite numbered sources; repository excerpts are pinned to a commit and open in a source card.
Easy to share. One HTML file with four styles and light or dark themes. Export a PNG, WebP or JPG long image, or print to PDF. Ask about any panel to get a follow-up your agent can use to revise just that panel.
Use Archify to answer as one page: our API's P99 went from 80 ms to 600 ms
while the mean barely moved. What is the likely cause, and how should we investigate?
Archify × Kimi Work. Find Archify in the Kimi Work plugin store as Interactive Architecture Diagram. Describe your system in one sentence to create an interactive diagram. Try it in Kimi Work →
Supercode sponsors Archify and enhances Codex and Cursor with token optimization, curated Skills, and spec-driven development. Archify is featured as a Supercode Editor’s Choice skill.
Thank you to OpenLux for sponsoring this project! OpenLux is an all-in-one AI platform for businesses, bringing together leading AI models from major providers worldwide. With fast, reliable service and responsive technical support, OpenLux offers base pricing for Claude, OpenAI, and Gemini models as low as 8.82%, 4%, and 8% of official rates, respectively.
Exclusive offer for Archify users: Sign up through our referral link and enjoy up to 7.5% off credit top-ups!
Access leading AI models through PackyCode with one API endpoint and one API key. Enjoy automatic failover and dedicated high-speed routes for Codex and Claude Code.
Get started with $1 in free credits, a discount on your first top-up, and savings of up to 80% on eligible routes. Pay in RMB with no currency conversion markups or extra top-up fees.
Thank you to AICodeMirror for sponsoring Archify! AICodeMirror provides API relay services for Claude, Codex, and Gemini, with enterprise-grade concurrency, invoice issuance, and 24/7 technical support. Codex pricing starts at 7% of standard rates, with additional top-up discounts.
Exclusive offer for Archify users: Register through our referral link to receive 20% off your first top-up.
Thank you to Infistar.cc for sponsoring Archify! One API key covers text, image, and video creation with GPT, Claude, Gemini, DeepSeek, Qwen, Kling, and other models, without switching groups. Model API pricing starts at 1% of official rates, and AI images start at ¥0.06 each.
Exclusive offer for Archify users: Sign up through our referral link for $5 in trial credits and a special offer on your first top-up.
EverMind sponsors Archify and builds memory infrastructure for agents. Its Raven harness supports Archify as a Skill for verified, interactive system maps.
COMMUNITY STORIES · Selected examples shared by users
Keep building after the diagram is generated. Archify is open source and its output is standalone HTML. Ask your agent to adapt it, connect useful links, or add interactions for your own workflow. Community creations already span team collaboration, travel planning, legal citation checks, contract review, and incident retrospectives. These are just a few examples.
One user started with a hand-drawn multi-agent architecture, turned it into an interactive diagram, then added a Kimi execution pool through conversation. Others asked their agent to read a project and brought the resulting architecture into Feishu or DingTalk for team discussion.
Another user turned a Shanghai CityWalk guide into a four-day itinerary: switch between days, inspect a stop, and jump to Amap, Xiaohongshu, or Dianping. The author also added arrival check-ins and stop notes, turning the itinerary into a small tool to use during the trip. These extensions were added by the community author for this particular artifact.
Community artifact · Shanghai CityWalk · Four days of routes and place links
Download it. Open it. Explore it.
The output is a self-contained HTML file. Download it and open it in your browser to use the node details and path exploration included in that artifact. No Archify installation is needed to view it. Send the HTML to someone else and the interactions go with it; external websites and map links need a network connection.
The agent switcher covers cursor, codex, claude-code, and opencode.
Archify may GET the fixed stable manifest solely to show an optional reminder; it never downloads or installs updates. Successful checks wait about 24 hours (±20%); active use retries failures after 6, then 24 hours. The server sees normal HTTP metadata (IP and time), but receives no version, Agent, project data, prompts, account/device ID, or ETag. You decide whether and when to update. Set ARCHIFY_UPDATE_CHECK_DISABLED=1 to disable networking and reminder-state writes.
Stay updated
Get release notifications: select Watch → Custom → Releases at the top of this GitHub repository. Starring the project does not subscribe you to release notifications.
Installations with the update checker also check for newer stable releases during diagram delivery and can show a reminder. Older installations without the checker need a manual update to gain this feature. You choose whether and when to upgrade; Archify never installs updates automatically.
2. Start from a description — no repository required
Use Archify to draw: Browser -> API -> Redis cache -> PostgreSQL fallback.
For source evidence, open a repository and ask:
Analyze this repository, then use archify to create a high-level runtime architecture diagram.
Show 8–12 core components, one primary path, external dependencies, and trust boundaries.
Put supporting detail in cards instead of adding more edges.
3. Refine in chat
Continue with focused requests such as add Redis, move auth to the left, or highlight the rollback path. Archify keeps the typed source available for targeted iteration.
Choose the right diagram
Ten diagram types, architecture comparisons, and examples
When things happened: incident reviews, release histories
Timestamps with time zone, events, source lanes, whether times are observed or illustrative
Waterfall
Where the time went in one request or agent run
Spans, start times and durations, nesting, whether timings are measured or illustrative
Architecture's optional deployment-ownership profile fails closed when authored owners, region placement, private database scope, or named crossings are missing; it is never implicit and does not inspect live infrastructure. See the checked deployment proof.
For design or PR review, Architecture Delta compares validated Before / Delta / After snapshots with a machine receipt. Select an authored change or play one finite, viewer-only Review; it infers no impact, risk, or merge safety.
node archify/bin/archify.mjs guide "Show an API request with Redis cache miss"
node archify/bin/archify.mjs guide "Map Kafka topics, consumer groups, replay, and DLQ" --json
Workflow keeps the happy path clear across lanes:
Sequence explains one interaction over time:
Data Flow makes movement and sensitivity boundaries explicit:
Lifecycle separates progress, waits, retries, and terminal outcomes:
New in 3.1: ERD, Class, Tree, Timeline and Waterfall.
ERD keeps tables, every column and key, and relationship cardinality together:
Class shows contracts, selected members, and which types depend on or implement them:
Tree shows single-parent containment, such as a capability breakdown:
Timeline places events on one proportional clock, with a lane per source:
Waterfall shows where the time went across nested and overlapping spans:
Explore these examples: ERD · Class · Tree · Timeline · Waterfall. The Timeline and Waterfall examples use illustrative data; treat timestamps or durations as real only when they come from logs or traces.
Map components, workflows, and relationships from code or a description.
Explore nodes, follow paths, and share any view as a link.
Extend it your way
Share the result
Keep an editable source and build on the open-source code or generated HTML with your own interactions and use cases.
Share a self-contained HTML file or export images, video, and share cards.
The engineering behind the experience
Layout judgment over generic auto-layout — the agent chooses hierarchy, spacing, routes, and emphasis; shared automatic endpoints spread deterministically instead of piling arrows on one midpoint.
Typed JSON IR — every renderer-backed mode has a schema and reproducible source.
Atomic validation before delivery — schema, layout, HTML/SVG, route, and label-to-route clearance checks must all pass before a showcase artifact replaces the last known good output.
Failures come with a repair receipt — validate --json and deliver --json return stable rule codes, the exact subject, measured evidence, and only supported repair controls instead of a Node stack or an unstructured retry guess.
Last-good live preview — an optional desktop loop watches one JSON file, refreshes only after the latest candidate passes every gate, and keeps the previous verified diagram visible when a save is incomplete or invalid.
Truthful interaction — focus, upstream/downstream reach, exact routes, role comparison, and stories reuse authored nodes and relationships instead of inventing topology or claiming runtime impact.
Source evidence, only when requested — Evidence-backed Architecture nodes mark themselves SRC n and open Git-verified files and line ranges pinned to one public commit; ordinary artifacts stay source-free.
Portable by default — the result is one HTML file; exports remain full-diagram and free of temporary viewer state.
Archify is not a general-purpose drawing editor or a Mermaid theme. It turns technical intent into a communication artifact.
How it works
Generation, validation, preview, and delivery details
Step
What happens
Generate
The agent creates typed JSON IR from your description.
Validate
Bundled validators and layout rules check the source; failures identify the exact local repair in machine-readable JSON.
Preview (optional)
A loopback-only desktop session watches one source and reloads only verified revisions; failures keep the last-good artifact.
Deliver
A same-directory candidate is rendered and checked; only a passing artifact atomically replaces the target, then optional --open launches that exact file.
Iterate
The agent updates the source while unrelated structure stays stable.
preview is an explicit loopback-only desktop mode: it watches one JSON file on a random 127.0.0.1 port, keeps the last verified output through failures, stops with Ctrl-C, and adds no generated-HTML runtime. Use --no-open for tests or manual URL opening.
deliver --open is an opt-in one-shot handoff after commit. Opener failure preserves success; JSON remains on stdout and the absolute fallback path goes to stderr.
On failure, validate --json and deliver --json emit one JSON object. Apply only each diagnostics[] subject's supportedFixes, within the Skill's two correction rounds; visual review remains separate.
meta.locale localizes page title, Legend, states/errors, a11y, HTML/SVG lang—never authored content. en, zh-CN, zh-TW, es, ko, and ar are bundled and need only meta.locale; meta.translations (canonical message key → translated string) overrides individual keys and keeps the rest of the language. Other languages supply their catalog there (see archify/examples/locales/), or the renderer falls back to English and discloses it. Static omits animation; classic defaults.
Explore and share the output
Action
Control
Open the factual Diagram Guide
?
Find and focus a semantic node
/
Trace upstream/downstream authored reach
Focus a node → Upstream / Downstream
Probe a directed route and inspect its journey
R or PATH
Compare one or two semantic roles
L or LENS
Open the live overview radar
M or MAP
Enter Presentation Stage
F
Choose visual style (S cycles) / toggle theme / open Export
S / T / E
Zoom or reset
+ / - / 0
Stable links can restore #focus=, #focus=&reach=upstream|downstream, #relation=, #route= ~, and #lens=~. Live repeats connection flow until paused; semantic previews remain bounded. Motion respects prefers-reduced-motion and never enters canonical exports.
The complete generation and viewer contract lives in archify/SKILL.md.
Installation options
Surface
Install location or method
Capability
Claude Code
~/.claude/skills/ or .claude/skills/
Full renderer + validation workflow
Codex CLI
~/.agents/skills/ or .agents/skills/
Full renderer + validation workflow
opencode
~/.config/opencode/skills/, .opencode/skills/, or .agents/skills/
Full renderer + validation workflow
Claude.ai
Upload archify.zip under Settings → Capabilities → Skills
Community Skill-only integration; Node >=18; not a Nous official product. No telemetry. It is not a switcher target. Details.
DeepSeek Harness
Opt-in: dsh plugin --profile web add @tt-a1i/[email protected]. Invoke: Use the archify skill to map this repository's runtime architecture. Remove: dsh plugin --profile web remove @tt-a1i/archify-dsh.
Community integration for developer-preview @deepseek-ai/[email protected]; Node ^22.19.0 || >=24.0.0; not an official DeepSeek product. No telemetry. Shell files need exact workspace paths, not Web Produced Files. Details.
WeChat: scan the QR code below. WeChat group codes expire periodically; if this one has expired, ask for the current code through Discord or QQ.
QQ group: 1121948602
WeChat
QQ
Official channels and third-party services
Open-source project: The source code and installation packages are free to use under the MIT License.
Official website:archify.si currently provides project information, examples, and installation guidance.
Third-party services: Pricing, data handling, and support are determined by the respective provider. A similar name or domain does not establish an official affiliation.
Building a standalone package on Archify? Submit it to the community catalog; the guide includes a collapsible example and complete Chinese steps.
Issues, pull requests, and real-world diagrams are welcome. Start with the contribution guide, use the reproducible bug form for failures, or submit a validated diagram through the community showcase form. · LINUX DO
Support Archify
If Archify has been useful to you, you can support its continued development. Thank you for helping keep the project going ❤️
Support via WeChat Pay
Scan the QR code below with WeChat, or save it and open it in WeChat to scan.
Support via Alipay
Scan the QR code below with Alipay, or save it and open it in Alipay to scan.
Using Archify, sharing it, reporting bugs, and contributing improvements are also ways to help.
